ROTATEMP me-vi Package
EUR 7.075,00
Характеристики
Вес
—
7.1 kg
Возможность калибровки
—
да
Диаметр
—
16 mm
Диаметр стойки с интегрированным краном
—
16 mm
Диапазон вращающего момента
—
0.01 - 200 rpm
Диапазон измерения вязкости
—
40000000 mPas
Диапазон устанавливаемого времени
—
0.017 - 6000 min
Динамическая нагрузка
—
5 kg
Дисплей
—
TFT
Дисплей таймера
—
TFT
ROTATEMP me-vi Package
EUR 7.075,00
#PROP_TITLE#
—
#PROP_VALUE#

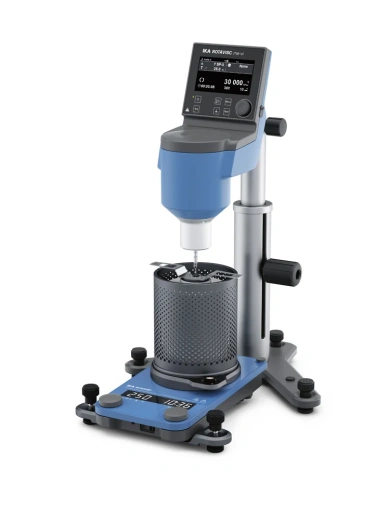

The ROTATEMP me-vi Package is the ideal solution for precise and reliable viscosity measurement of difficult-to-measure, highly viscous samples.
The package combines the ROTAVISC me-vi rotational viscometer with the ROTATEMP high-temperature system to ensure optimum temperature control during the measurement process.
ROTAVISC me-vi is a high-performance rotational viscometer for applications in a measuring range from 100 to 40,000,000 mPas.
The space-saving ROTATEMP high-temperature system is the perfect complement for measuring temperature-dependent samples that are not able to flow at room temperature, such as asphalt, bitumen, wax, polymers, candy base or hot melt adhesives. Thanks to precise and efficient temperature control, based on the proven IKA magnetic stirrer technology, samples can be heated up to 300 °C in just 16 minutes without overheating. This allows precise and reproducible measurements to be carried out.
YOUR BENEFITS:
The package combines the ROTAVISC me-vi rotational viscometer with the ROTATEMP high-temperature system to ensure optimum temperature control during the measurement process.
ROTAVISC me-vi is a high-performance rotational viscometer for applications in a measuring range from 100 to 40,000,000 mPas.
The space-saving ROTATEMP high-temperature system is the perfect complement for measuring temperature-dependent samples that are not able to flow at room temperature, such as asphalt, bitumen, wax, polymers, candy base or hot melt adhesives. Thanks to precise and efficient temperature control, based on the proven IKA magnetic stirrer technology, samples can be heated up to 300 °C in just 16 minutes without overheating. This allows precise and reproducible measurements to be carried out.
YOUR BENEFITS:
- Fast, precise and reproducible results: The combination of ROTAVISC viscometer and ROTATEMP high-temperature system simplifies the viscosity measurement of difficult-to-measure, highly viscous samples.
- Simple operation and space-saving: The complete system is supplied ready for connection. With its space-saving design, it fits easily into any laboratory.
- Optimum compatibility and automation: ROTAVISC and ROTATEMP are compatible with the labworldsoft® laboratory software, which makes it easy to automate, control and document your measurement results.
Комплект поставки
- ROTAVISC me-vi control
- ROTASTAND
- ROTATEMP
- SP set-2
- PT 100.8
Характеристики
|
Вес
|
7.1 kg |
|
Возможность калибровки
|
да |
|
Диаметр
|
16 mm |
|
Диаметр стойки с интегрированным краном
|
16 mm |
|
Диапазон вращающего момента
|
0.01 - 200 rpm |
|
Диапазон измерения вязкости
|
40000000 mPas |
|
Диапазон устанавливаемого времени
|
0.017 - 6000 min |
|
Динамическая нагрузка
|
5 kg |
|
Дисплей
|
TFT |
|
Дисплей таймера
|
TFT |
|
Допустимая относительная влажность
|
0.8 |
|
Допустимая плотность
|
9999 kg/dm3 |
|
Допустимая температура окружающей среды
|
5 - 40 °C |
|
Задание точности скорости
|
±0.01 rpm |
|
Защита от перегрузки
|
да |
|
Измерение вращающего момента
|
да |
|
Индикатор вращающего момента
|
да |
|
Индикатор рабочей температуры
|
TFT |
|
Индикатор скорости
|
TFT |
|
Класс защиты по DIN EN 60529
|
IP 40 |
|
Контроль диапазона скоростей
|
TFT |
|
Крепление на штативе
|
Держатель |
|
Крутящий момент
|
0.7187 mNm |
|
Муфта
|
12 mm |
|
Направление вращения
|
право |
|
Напряжение
|
100 - 240 V |
|
Объем базового сосуда
|
600 ml |
|
Ограждение
|
me-vi |
|
Повторяемость вязкости
|
0.2 % |
|
Постоянное напряжение
|
24 V= |
|
Потребляемая мощность
|
24 W |
|
Потребляемая мощность (Standby)
|
1.6 W |
|
Производимая мощность привода
|
4.8 W |
|
Рабочая температура
|
-100 - 300 °C |
|
Размеры
|
351 x 629 x 372 mm |
|
Разъем для подключения контактного
|
PT 100 |
|
Разъем RS-232
|
да |
|
Разъем USB
|
USB-B |
|
Режим работы
|
Работа по таймеру и непрерывная работа |
|
Серия измерительных шпинделей
|
SP set-2 |
|
Таймер
|
да |
|
Точность вязкости
|
0.01 |
|
Точность фактически отображаемой температуры
|
0.1 K |
|
Функция графа
|
да |
|
Ход (не более)
|
61 mm |
|
Ход телескопического штатива
|
200 mm |
|
Частота
|
50/60 Hz |
|
Штатив
|
Rotastand |
|
Энергопотребление
|
1000 mA |
|
Touch-функция (управление прикосновением)
|
да |
